The Story
5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. A technical solution aimed at makers, designers and lamp creators working on bespoke structures, functional prototypes or 3D-printed lamp bodies.

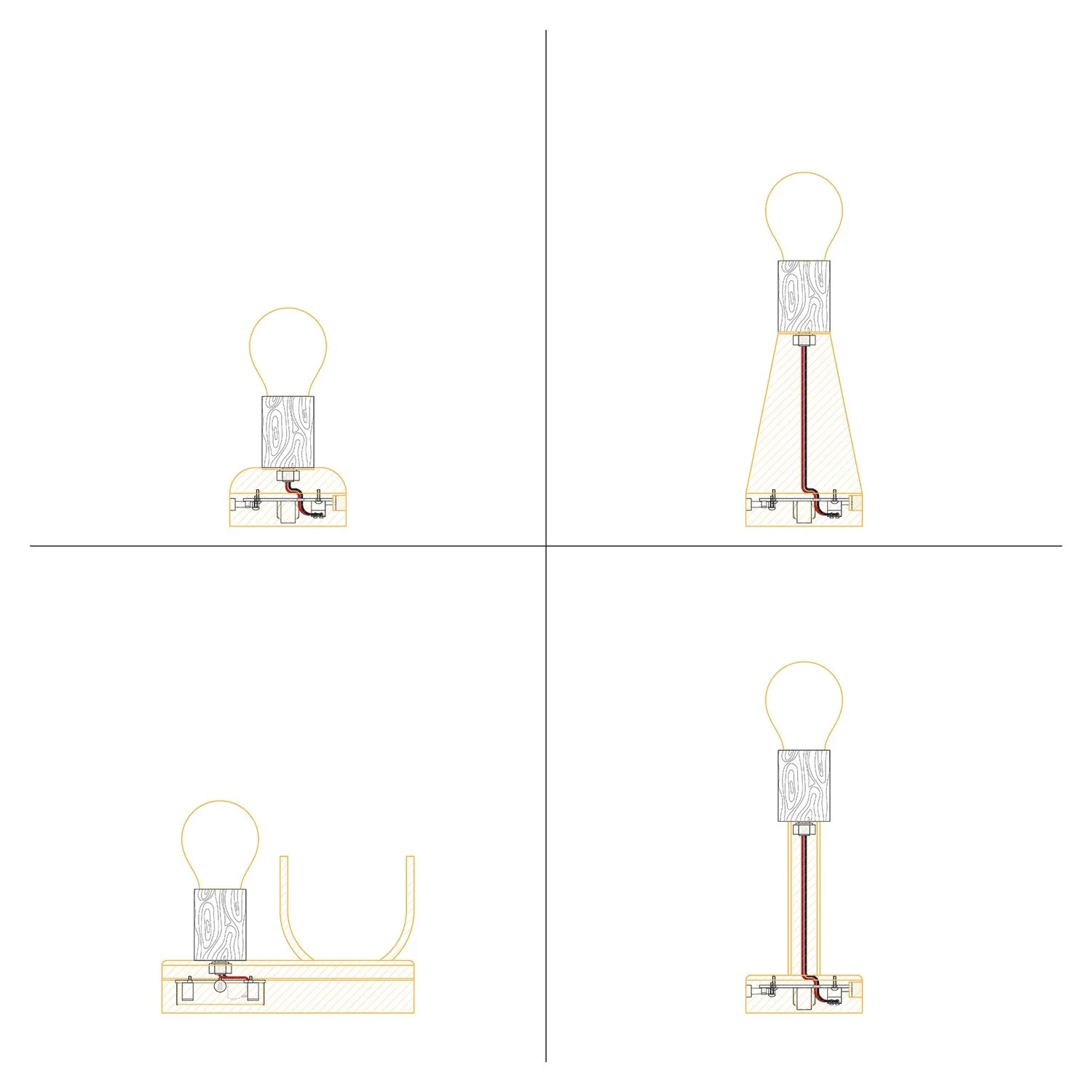

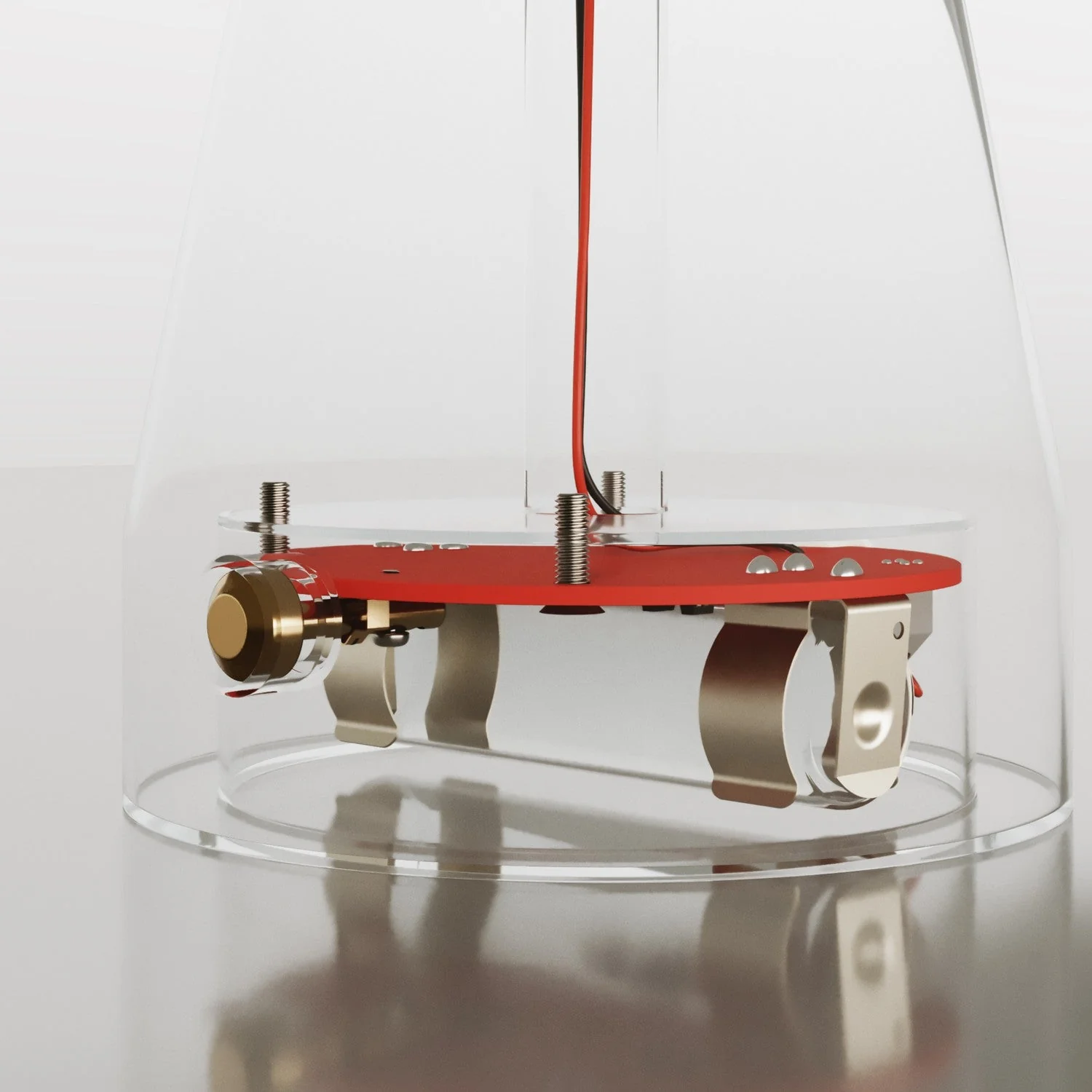

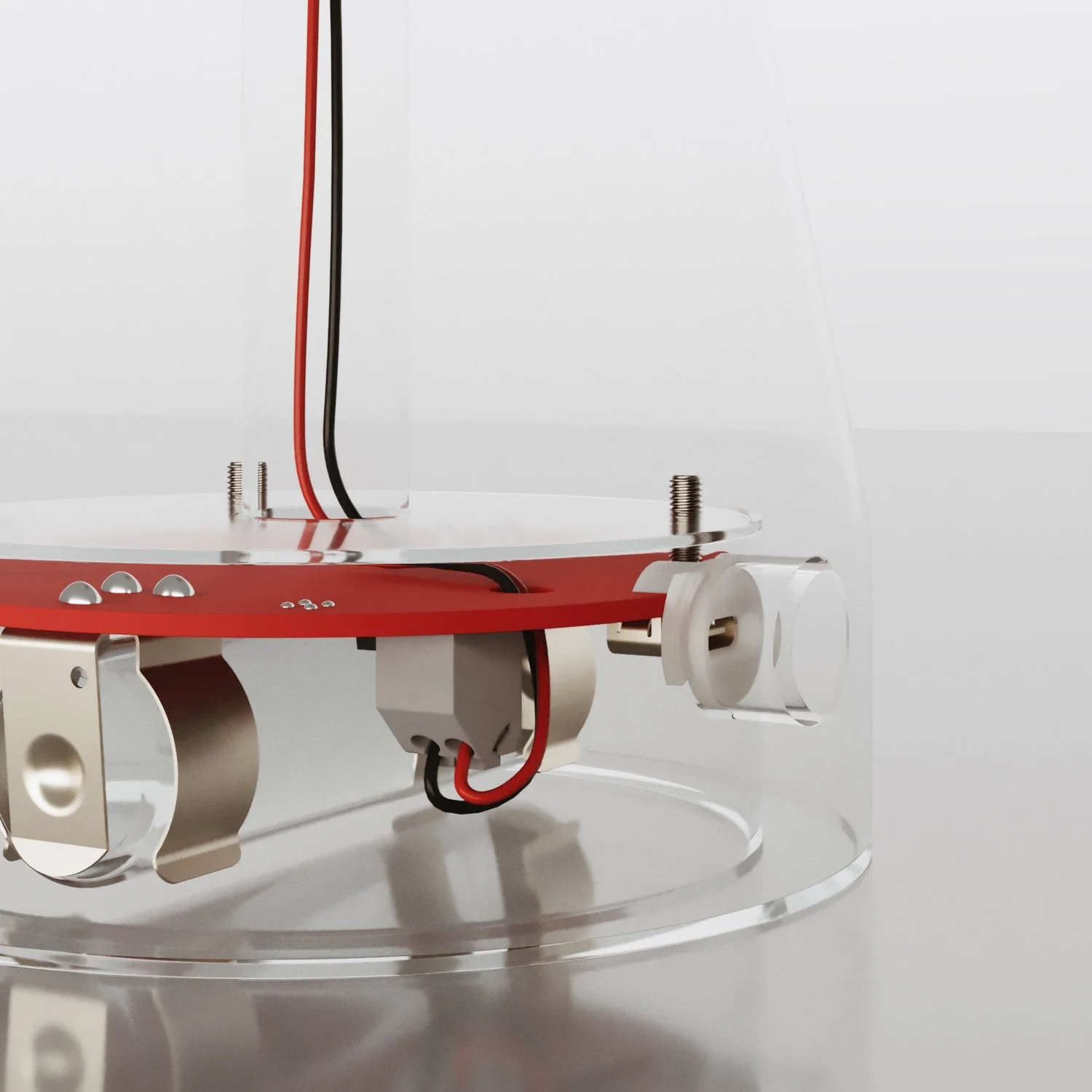

The system uses a circular electronic board with 5V input via USB C and 5V output dedicated to powering the light source. The connection to the Socket via low-voltage cables makes it possible to separate the electronic component from the Light bulb and to manage the layout of the components within the project in a flexible way.
The kit includes an E27 Socket in wood, designed to remain visible as an integral part of the design. The natural material introduces a tactile component that interacts with the lamp body and the light source.
Light control is managed via a push button with integrated dimmer, with three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is suitable for creating battery-powered lamps that are repairable and easy to maintain.
Assembly requires no soldering or special tools. All connections are designed for quick installation with a standard screwdriver, making the kit suitable both for the prototyping phase and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:

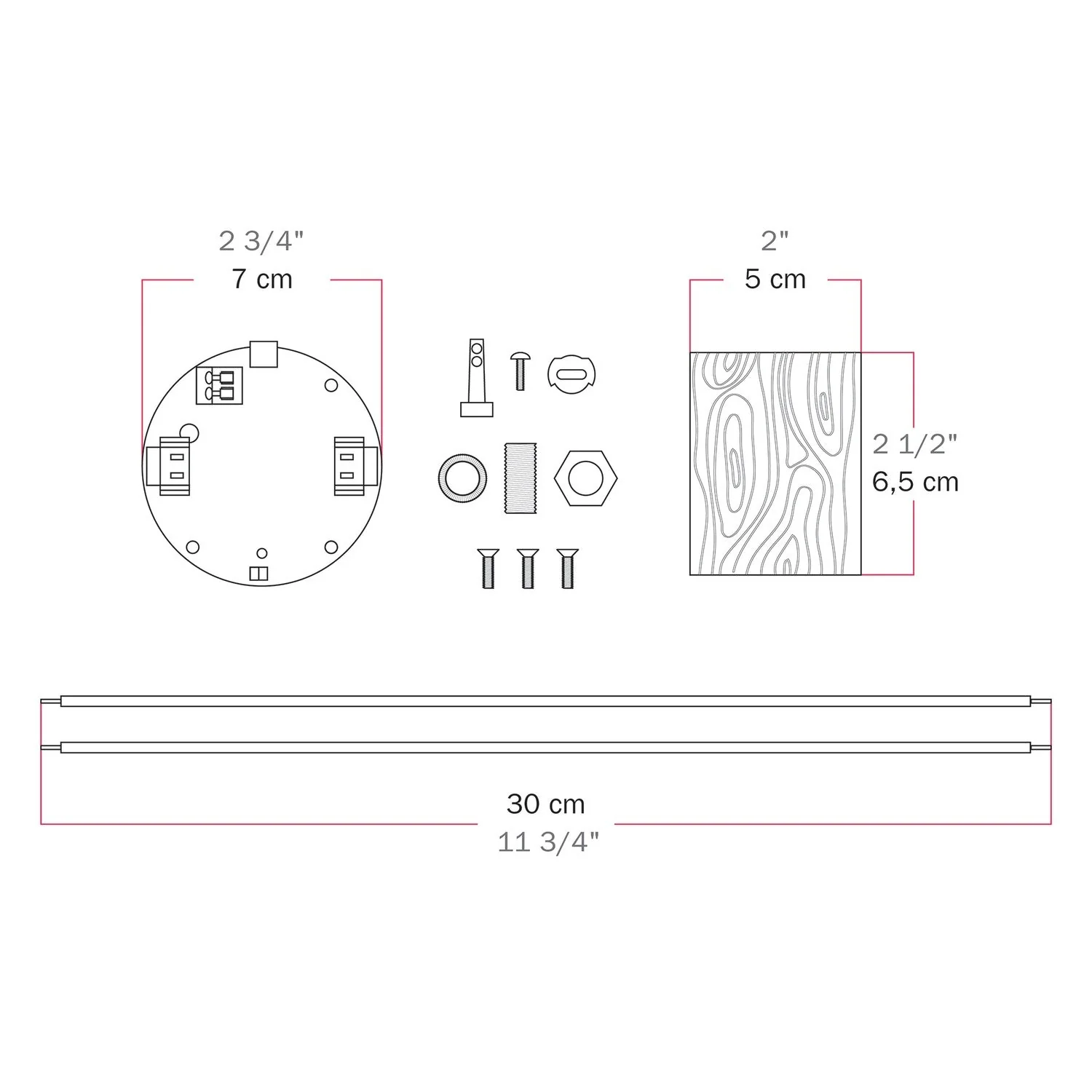

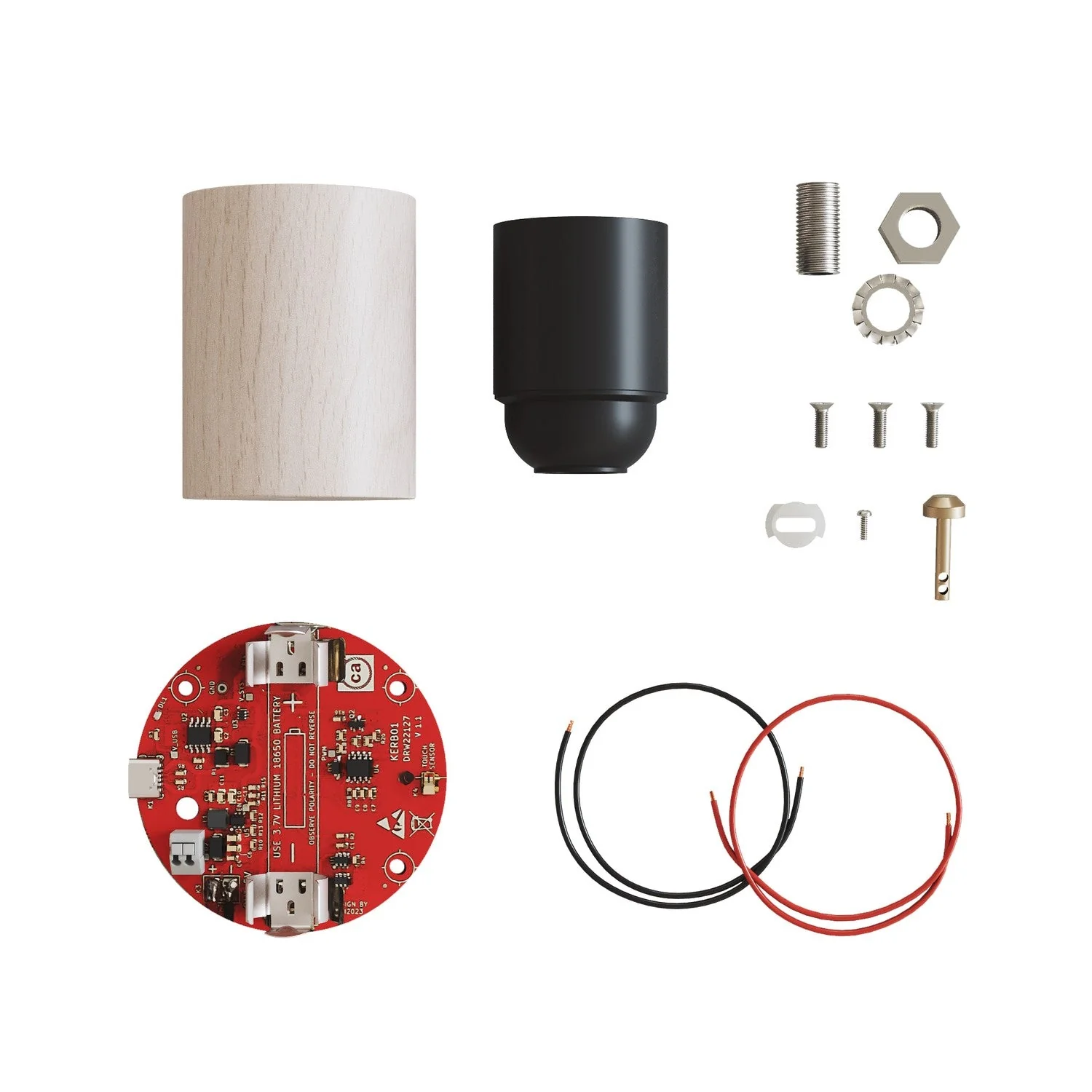

Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Cylindrical E27 Socket in natural wood
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
