Creative-Tube, 20 mm diameter, covered in RN01 Natural Linen fabric, flexible raceway

Creative-Tube is much more than just a fabric-covered raceway!
In fact, thanks to the metal filaments running its entire length, Creative-Tube can take and hold any shape. The only limit to the applications and uses of Creative-Tube is your imagination!

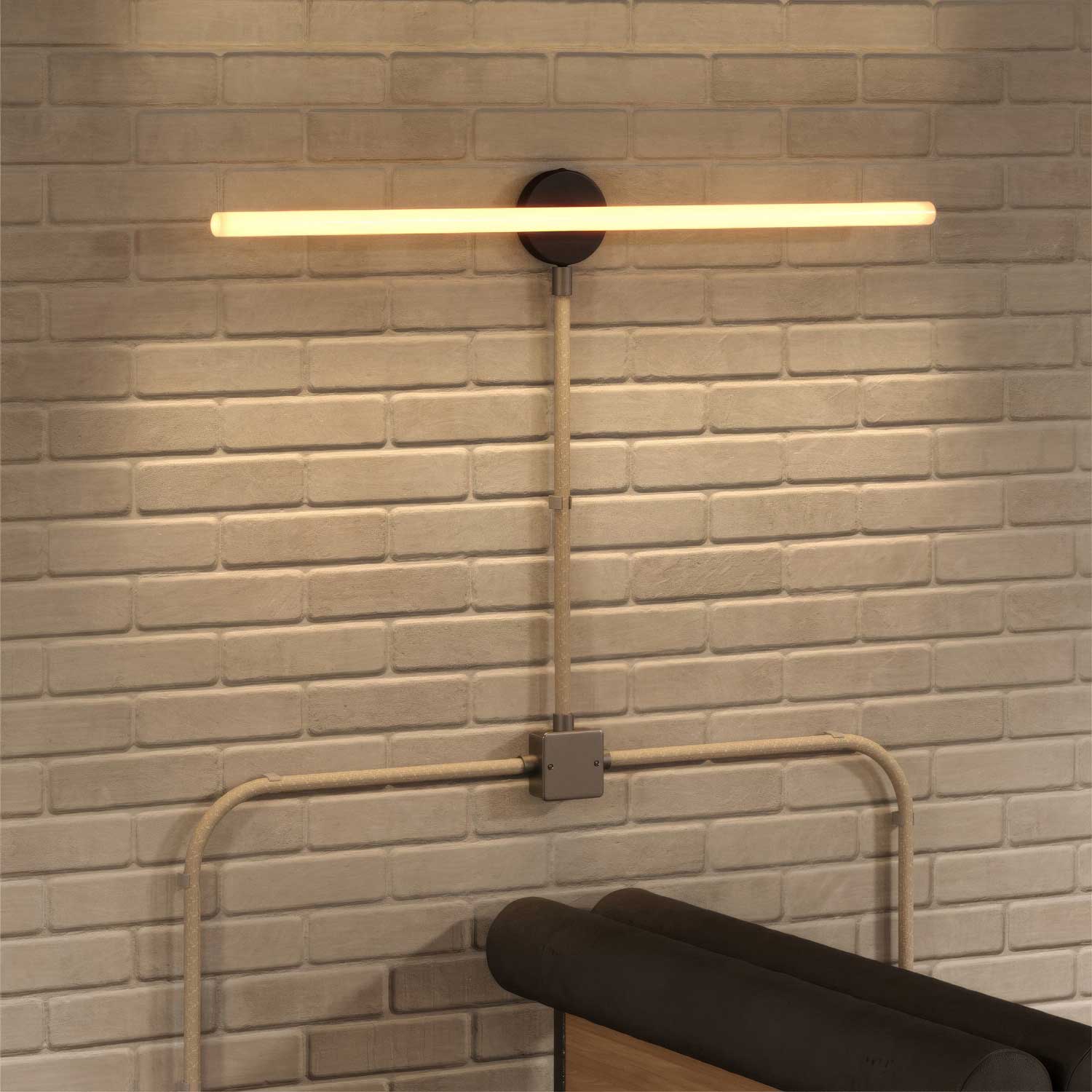

The 20-millimeter diameter Creative-Tube in Natural Linen Neutral frees you from all those unsightly plastic electrical raceways running across your walls, and lets your imagination run wild by allowing you to draw a path of color and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling canopies for wall or ceiling lamps directly
- create a complete electrical system with outlets and switches that's perfect to show off, instead of hiding in the walls!

Creative-Tubes can be used on exterior walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 standards.

Creative-Tube is sold by the meter; multiple orders will be delivered as a single piece up to a maximum of 30 meters.

Can’t find the Creative-Tube in the color you want? Contact us: we can make it just for you!

Technical specifications:

Classification: 3321
Crush resistance: >750N over 5 cm at 20°C
Impact resistance: (-15°C) after conditioning with 2kg mass hammer
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohms
Diameter: 20 millimeters
Color: RN01 Natural Linen Neutral

According to CEI 64-8 standards, the maximum usable cross-section of the internal cords in the Creative-Tube can be 10 millimeters, to ensure the cords can be pulled out, for a Tube up to 10 meters long. Up to 20 meters, the maximum thickness will be 9 millimeters.

Due to the very structure of Creative-Tube, once positioned, it is necessary to cut any pieces of metal filament protruding from the edge of the tubing before installing accessories or connecting it to the junction box.
